Avalon Robotics’ innovative concept for preplating webs in open web floor trusses. This overview delves into the proven preplating process, offering insights into how it enhances efficiency and streamlines truss manufacturing. Learn about the steps, benefits, and potential applications of this automation concept, designed to optimize workflows and revolutionize the construction industry.

The Door Frame Assembly Cell is a robotic system designed to streamline and automate the assembly of interior door trim, specifically for mounting the inside trim pieces against which the door closes in the frame. This cell precisely positions and secures the trim components onto the door frame, ensuring accurate alignment and consistency across assemblies. Equipped with a router, the system efficiently cuts and finishes door striker holes to meet specified measurements and alignment, readying the door for secure locking and optimal functionality.

After completing each door frame assembly, the robotic cell automatically transfers the finished product to a dedicated stacking area, where it carefully places each frame on a transport cart. This stacking mechanism is engineered for stability and easy cart removal, minimizing downtime and expediting transportation to the next production stage. The Door Frame Assembly Cell is designed to boost productivity, quality, and safety by eliminating manual handling, reducing potential errors, and ensuring consistent, precise construction in each assembled door frame.

Complete LGS Panel Line | Framing, Blocking & Sheathing Stations in Action
Step into the future of light gauge steel construction with this full walkthrough of a complete LGS panel line. From precision framing to integrated blocking and automated sheathing, this video showcases every station along the line — including all conveyance systems that keep production flowing. Whether you’re in modular construction, prefab, or panelized building, this system offers a clear look at how automation can streamline structural panel production from start to finish.

This onsite wall panel system revolutionizes residential framing by using robotics to assemble wall panels directly at the construction site. The system arrives in three 40-foot containers, delivered by semis and set up on the ground, creating a compact, efficient onsite factory. By building panels on location, this system eliminates the high costs and logistical challenges of transporting bulky, pre-fabricated wall panels from an offsite facility.

Once set up, a single operator controls the automated assembly process, guiding the robots as they cut, position, and fasten each panel with precision. This streamlined setup improves the quality and consistency of each wall panel, reducing errors and rework. As panels are completed, they are quickly moved to their installation points using a telehandler, which allows for smooth, efficient delivery within the site. This innovative approach not only accelerates the framing process but also provides significant cost savings and ensures high-quality framing tailored precisely to each build, redefining speed and efficiency in residential construction.

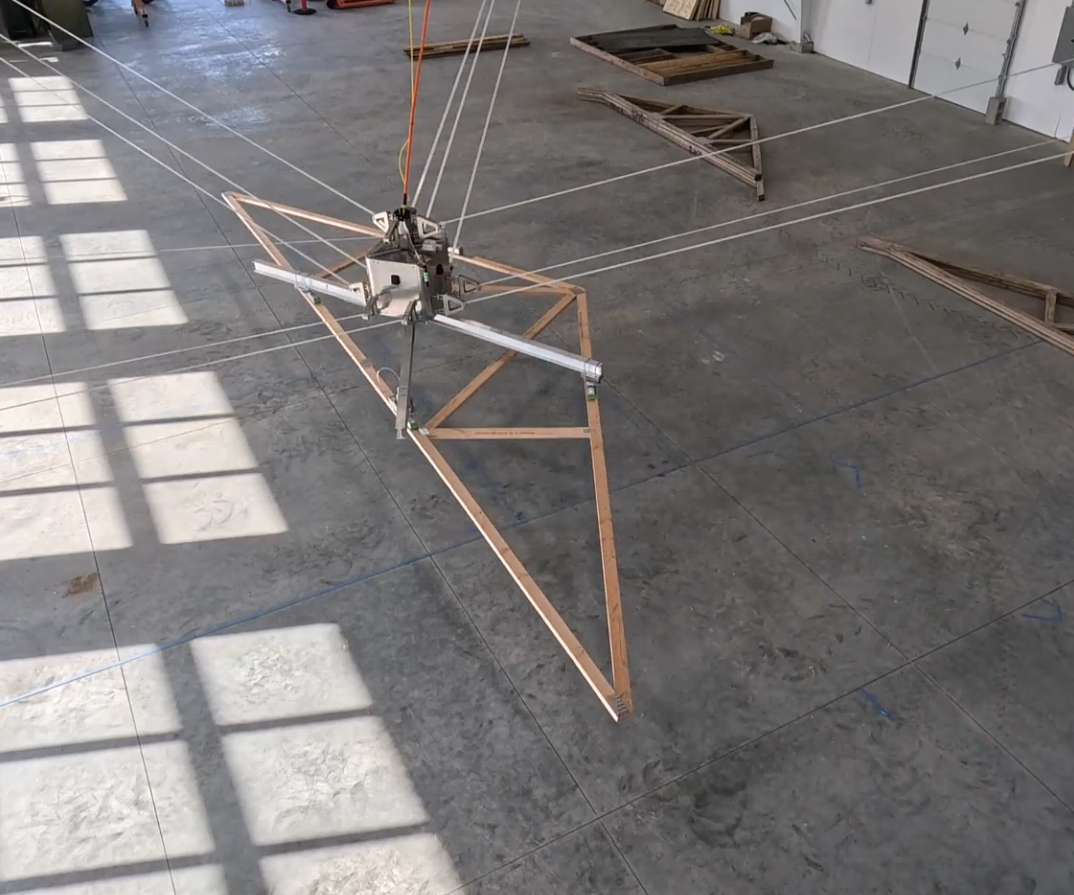

In this demo, our cable robot takes truss handling a step further. Picking from one position and placing in two different destinations. This flexibility shows how automation can adapt to production needs, streamline workflow, and reduce manual handling risks.

By expanding from a single place to multiple places, we unlock new ways to optimize stacking, staging, and plant layout. Watch as the system demonstrates both precision and adaptability in real-time truss movement.

From above, you can see the cable robot perform three different truss movements in one seamless sequence:

Single pick to single place
Single pick to dual places
Single pick with a larger truss

The overhead angle highlights the smooth flow of each move, the precision of placement, and the adaptability of the system as it transitions between truss sizes and destinations. This perspective shows how automation can bring order, efficiency, and reliability to truss handling in the plant.
